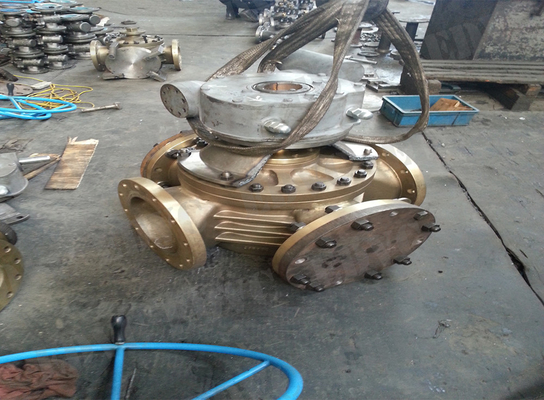

                                            150LB Grear L Type Four Ways Aluminum Bronze Plug Valve

Plug Valve is the earliest valve type for human to use to stop the medium. Through 90° turning, the port of the plug and the port of the body can connect and break, then valves can open and close.
Plug valves is the best chose for stopping and shunting. But according to medium, and sealing face, through special design and change the channel shape of plug valves, it becomes suitable for shunting situation. Because of the friction between two sealing faces, so plug valves are also suitable for medium with suspended particles.

Product Specification:

- Material: Aluminum Bronze ASTM B148 C95800

- Size Range: 1/2"~14"

- Pressure Rating: 150LB~600LB

Applicable Standards:

- Design according to API599/API6D

- Face to face ASME B16.10

- End Flanges ASME B16.5/ASME B16.47-AB

- Butt welded ends ASME B16.25

- Inspection and test API 598

-With one machined seat & blow-off,cover & gasket design
