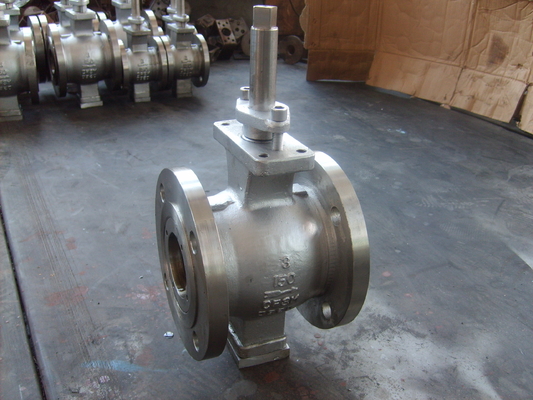

Pneumatic Actuator V-Notch Segment Ball Valve
EDVC segmented ball valve is similar to a conventional ball valve, but with a contoured V-notch segment in the ball. This control valve has good rangeability, control, and shutoff capability. The V-notch ball provides positive shearing action and produces an inherent equal percentage flow characteristic.
V Port Seat V Ball
DESCRIPTION
The segmented V-port ball control valve provides excellent modulating control with obstruction free design.The uni-body construction gives increases structural integrity and minimized leaks through body joints.The specially designed compound V opening provides precise equal percentage flow control with small incremental opening in the lower end of the valve rotation and high flow capacity in the upper end. The nearly wide open at full open, along with recessed bearings virtually eliminates plugging/clogging of the valve.
DESIGN AND CONSTRUCTION
The valve’s design allows control of the most fluids used in many industries. The valve is suitable for fibers, particles in suspension, dirty, clean, viscous, and corrosive fluids, gas, steam, and especially pulp and paper applications.The valve can be supplied with a variety of actuators,positioners, limit switches/transmitters, or other top works accessories.
OPERATION
The valve can be direct mounted (no mounting bracket or coupling) to:• spring & diaphragm actuators,• rack & pinion actuators, or• electric actuatorsThey can be controlled with a variety of EDVCpositioners:• Pneumatic• Electro-pneumatic• Digital SmartThere are two actuator mounting options.• The standard connection is direct mount compatible with any ISO 5211 standard actuator.Optional splined connection for the installation of diaphragm actuators with DSY-DSZ conversions. V PORT SEGMENT BALL VALVE
