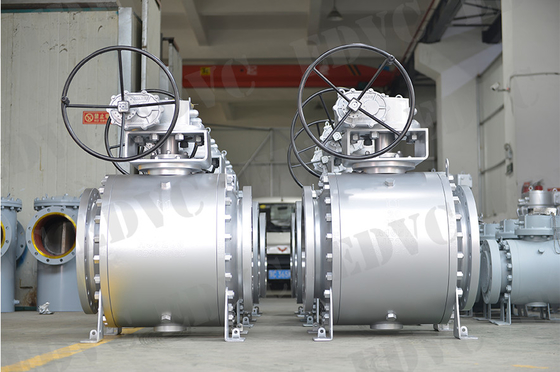

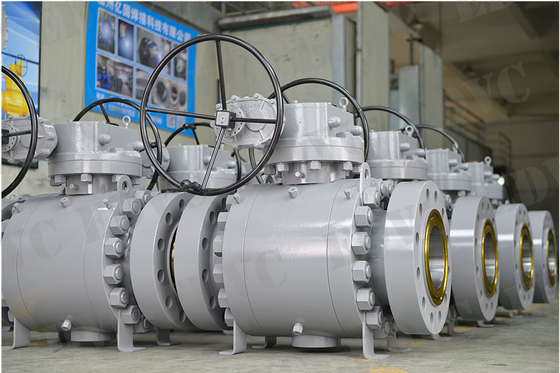

                                                    NACE MR0175 Three-Piece Fire Safe Trunnion Mounted Ball Valve

The trunnion mounted ball valve contains 3 main series: 1.cast steel two-piece design, 2.forged steel three-piece design and 3. top entry uni-body design, all designed conform to API 6D and fire safe test are satisfied to BS 6755 and API 6FA. They are available in size from 2 to 48 Wide range of body and trim material is available for service temperature from -46 C to 200C and pressure rating from ANSI class 150 to 1500 or for sour service to NACE MR0175.

Description

●Two piece , split body design

●Three piece , forged steel design

●Side Entry Design, Top Entry Design.

Standards

● Design standard: API 6D, EN13942, ISO-14313. ASME B16.34

● Face To Face Dimension: API 6D, EN 558-1, EN 12982, and ASME B16.10

● manual Operators

● Gearbox Operated

● Electric Actuators

● Pneumatic Actuators

● Gas Over Oil Actuators

● Electric-hydraulic actuator

Design Features & Applications

EDVC’s standard ball valves have been designed to API’s highest standards. Complete Split body & Fully welded design offers maximum protection against line pressure and thermal distortion with long life and trouble-free performance.

EDVC is supplying its products to the Crude oil transport and processing, Power engineering, Water supply systems and Process Industries throughout the world.

Seal Feature

EDVC ball valves are produced with spring-loaded seats. This spring load keeps the seat in contact with the ball even in absence of line pressure and makes very efficient seal at low line pressure.As line pressure increases, the seat area creates a piston effect which forces the seat against the ball, therefore a tight seal becomes effective. If the pressure is higher, the force exerted by the seat on the ball is increased by action of the pipeline pressure. Therefore, the higher the line pressure, the greater the piston action.

Self Lubrication

Self lubrication, low friction PTFE is used for trunnion and stem bearings. NYLON or other low friction materials are used for seat inserts. Self lubricating seals and stem bearing give predictable operating torque for the life of the valve.

Fire Safe Construction with Secondary Metal Seat

EDVC’s ball valves have been fire tested and can be supplied to API 6FA and API 607. The soft seat inserts, irrespective of their materials, will possibly fail when subjected to sudden high temperature conditions. EDVC provides a fire-safe design which may substantially prevent leakages through seals when damaged by high temperature. The function of the seats before and after the fire test is shown on the sketches. If the seat inserts are destroyed or burned out, a metal to metal seal is formed between the lower diameter of the seat and ball, while the seat to body seals, the stem packing and the end connections to body seals are designed to resist high temperature and will remain undamaged.

                              (Figures 1 & 2)

Trunnion Mounting

Trunnion mounted stems absorb the thrust from line pressure, preventing excess friction between the ball and seats, so even at full rated working pressure, operating torque stays low.

                   (Figure 3)

Body Vent and Drain

The body cavity may be vented in both open and closed state.

                        (Figure 4)

Double Block and Bleed

The seats are of both-side-sealing type, which means that they seal both on the upstream or downstream side of the ball valve and inside the valve. Whether in the open or closed position, pressure on each side of the ball is blocked from the body cavity by the seat rings engineered to self relieve. No pressure build up can occur in to body cavity. The body cavity can then be vented to the atmosphere or drained through the body port.

                                                                     (Figure 5)

Sealant Fitting

Sealant lubrication fittings come as a standard with EDVC’s design. In the event of seat insert or stem seal damage, external or internal leakage can occur. Emergency sealant injection can save the integrity of the valve by incorporating a sealant seal around the stem or between the seat and the ball until such time the valve may be properly serviced.

                                                                   (Figures 6, 7 & 8)

Antistatic Device

The springs provided at the stem allow the static charges to be led to the piping. In this way, an electrostatic charging of the ball is eliminated.

                                                                    (Figure 9)

note: Additional materials available upon request
