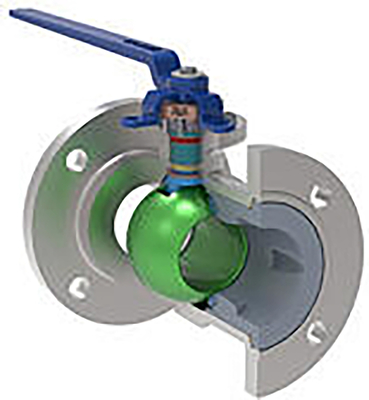

Uni-body Stainless Steel Floating Ball valve-Flange End
EDVC unibody resilient-seated ball valves are designed with unique 3-way packing arrangements for superior stem sealing to handle an extensive range of applications. These rugged, versatile, and high-performance unibody Memoryseal resilient-seated ball valves meet NACE specifications.
The Stainless Steel floating ball valves are designed to conform to BS 5351 and are certified to industry standards such as BS 6755, API 6FA and API 607. A wide range of body and trim material is available to service working temperature from -196 to 200℃(－320 to 392 .F) Valve Size 1/2 ” to 12" Pressure Rating ASME Class 150 - 2500 NACE lv1R0175 is also available upon request for sour servic.
Description:
● One piece Uni-body design
● Connaction: Flanged or NPT
Standards:
● Design standard: API 6D, EN13942, ISO-14313. ASME B16.34
● Face To Face Dimension: API 6D, EN 558-1, EN 12982, and ASME B16.10,
● Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
● Level Operators
● Gearbox Operated
● Electric Actuators
● Pneumatic Actuators
