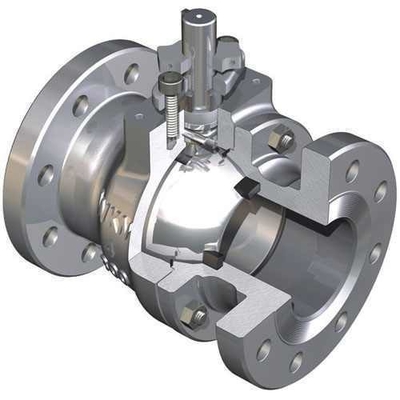

API Side Entry Tronion Ball Valve Carbon Steel 150#300#600# With Actuator

EDVC Metal Seated Ball Valves are designed for wide range of applications in the mining, refining, petrochemical, pulp and paper industries. The designs incorporate many technically advanced features which ensure reliable and repeatable shut off performance while providing the highest level of safety as demanded by these industries.

TECHNICAL SPECIFICATION:


● Size range: DN15 (1/2") to DN200 (8") (Floating design) DN15 (1/2") to DN500 (20") (Trunnion design)
● Pressure rating: ANSI Class 150 to 2500
● Connection: Flanged to ASME B16.5  Butt-welding ends to ASME B16.25 Socket-welding or Threaded ends to ASME B16.11, Nipple ends
● Body materials: CS, ITCS, CS+Clad, Chrome Molly /Alloy Steel, Stainless Steel, Duplex,Super Duplex, Inconel and other special alloys
● Top mounting: ISO 5211

● Temp. range-196℃ to + 538℃(-320℉ to + 1000℉)
● Design: API 608 / API 6D / ASME B16.34 ISO 17292 / ISO 14313
● Face to face: ASME B16.10 long Pattern / API 6D

The Main Parts and Materials:

ball vlave summary

The valve structure can be designed casting or forging type body, seat is Metal-to-metal type, and have floating ball and trunnion

mounted ball form. Overlay on ball and seat seal area are made with HVOF The HVOF process is use of combustible gas and oxygen combustion in special chamber, and then generating high temperature and speed flame, the speed about 1500~2000m/s, by an intert gas the powder is sent into the combustion chamber, and the powder will be melted down or half melted and its speed will be increased to 300~500m/s

or higher, so that the coating layer will be high strength, compact and berrer quality.

The HVOF is use of a DC arc between cathod and anode, the arc heat and ionizate work gas into high temperature plasma, and spray out plasma flame form nozzle. When powder is sent into plasma flame, it will be melted down, accelerated and sprayed on pretreatment

base material, and formed into coating.
